Exchange Choice Option

Now that we have this main menu, let's allow the user to choose a new exchange. We want the user to be able to choose between multiple exchanges.

To start, we need some starting variables, so, at the top after defining our figure and subplot:

exchange = "BTC-e"
DatCounter = 9000
programName = "btce"

We have "exchange," which is the "display name" of the exchange. This will be used in things like titles. Then we have DatCounter. Right now, you can just ignore this, but later we're going to be using this variable to dictate when a refresh of data is required. Finally, we have "programName" which is the name for the exchanges that we'll be using within our program as well as within the Sea of BTC API.

Next, we want to create a changeExchange function:

def changeExchange(toWhat,pn):
    global exchange
    global DatCounter
    global programName

    exchange = toWhat
    programName = pn
    DatCounter = 9000

This function will change the exchange "toWhat" which is the display exchange, and then the "pn" parameter is short for "program name."

This function just globals these variables (so they can be accessed locally), and then assigns the new values to them.

Next, we want to add the options that use changeExchange to our main SeaofBTCapp class:

class SeaofBTCapp(tk.Tk):

    def __init__(self, *args, **kwargs):

        tk.Tk.__init__(self, *args, **kwargs)

        tk.Tk.iconbitmap(self, default="clienticon.ico")
        tk.Tk.wm_title(self, "Sea of BTC client")


        container = tk.Frame(self)
        container.pack(side="top", fill="both", expand = True)
        container.grid_rowconfigure(0, weight=1)
        container.grid_columnconfigure(0, weight=1)


        menubar = tk.Menu(container)
        filemenu = tk.Menu(menubar, tearoff=0)
        filemenu.add_command(label="Save settings", command = lambda: popupmsg("Not supported just yet!"))
        filemenu.add_separator()
        filemenu.add_command(label="Exit", command=quit)
        menubar.add_cascade(label="File", menu=filemenu)

        exchangeChoice = tk.Menu(menubar, tearoff=1)
        exchangeChoice.add_command(label="BTC-e",
                                   command=lambda: changeExchange("BTC-e","btce"))
        exchangeChoice.add_command(label="Bitfinex",
                                   command=lambda: changeExchange("Bitfinex","bitfinex"))
        exchangeChoice.add_command(label="Bitstamp",
                                   command=lambda: changeExchange("Bitstamp","bitstamp"))
        exchangeChoice.add_command(label="Huobi",
                                   command=lambda: changeExchange("Huobi","huobi"))

        menubar.add_cascade(label="Exchange", menu=exchangeChoice)

        tk.Tk.config(self, menu=menubar)

        self.frames = {}

        for F in (StartPage, BTCe_Page):

            frame = F(container, self)

            self.frames[F] = frame

            frame.grid(row=0, column=0, sticky="nsew")

        self.show_frame(StartPage)

    def show_frame(self, cont):

        frame = self.frames[cont]
        frame.tkraise()

Note the major difference as the exchangeChoice definitions.

Right now, this option just changes the programs variables. Later, we will modify the animate function to take into account variable values to generate the dynamic data.

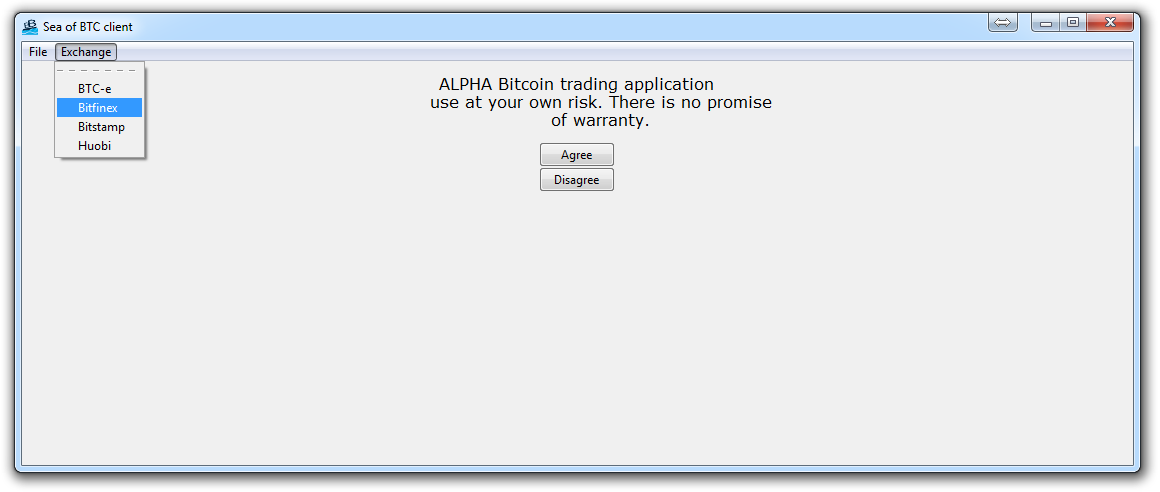

Currently, your menu and options should look like:

The full code up to this point for our Tkinter tutorial:

# The code for changing pages was derived from: http://stackoverflow.com/questions/7546050/switch-between-two-frames-in-tkinter
# License: http://creativecommons.org/licenses/by-sa/3.0/
import matplotlib
matplotlib.use("TkAgg")
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg, NavigationToolbar2TkAgg
from matplotlib.figure import Figure
import matplotlib.animation as animation
from matplotlib import style

import tkinter as tk
from tkinter import ttk

import urllib
import json

import pandas as pd
import numpy as np

from matplotlib import pyplot as plt


LARGE_FONT= ("Verdana", 12)
NORM_FONT= ("Verdana", 10)
SMALL_FONT= ("Verdana", 8)


style.use("ggplot")

f = Figure()
a = f.add_subplot(111)

exchange = "BTC-e"
DatCounter = 9000
programName = "btce"

def changeExchange(toWhat,pn):
    global exchange
    global DatCounter
    global programName

    exchange = toWhat
    programName = pn
    DatCounter = 9000


def popupmsg(msg):
    popup = tk.Tk()
    popup.wm_title("!")
    label = ttk.Label(popup, text=msg, font=NORM_FONT)
    label.pack(side="top", fill="x", pady=10)
    B1 = ttk.Button(popup, text="Okay", command = popup.destroy)
    B1.pack()
    popup.mainloop()



def animate(i):
    dataLink = 'https://btc-e.com/api/3/trades/btc_usd?limit=2000'
    data = urllib.request.urlopen(dataLink)
    data = data.readall().decode("utf-8")
    data = json.loads(data)


    data = data["btc_usd"]
    data = pd.DataFrame(data)

    buys = data[(data['type']=="bid")]
    buys["datestamp"] = np.array(buys["timestamp"]).astype("datetime64[s]")
    buyDates = (buys["datestamp"]).tolist()


    sells = data[(data['type']=="ask")]
    sells["datestamp"] = np.array(sells["timestamp"]).astype("datetime64[s]")
    sellDates = (sells["datestamp"]).tolist()

    a.clear()

    a.plot_date(buyDates, buys["price"], "#00A3E0", label="buys")
    a.plot_date(sellDates, sells["price"], "#183A54", label="sells")

    a.legend(bbox_to_anchor=(0, 1.02, 1, .102), loc=3,
             ncol=2, borderaxespad=0)

    title = "BTC-e BTCUSD Prices\nLast Price: "+str(data["price"][1999])
    a.set_title(title)









class SeaofBTCapp(tk.Tk):

    def __init__(self, *args, **kwargs):

        tk.Tk.__init__(self, *args, **kwargs)

        tk.Tk.iconbitmap(self, default="clienticon.ico")
        tk.Tk.wm_title(self, "Sea of BTC client")


        container = tk.Frame(self)
        container.pack(side="top", fill="both", expand = True)
        container.grid_rowconfigure(0, weight=1)
        container.grid_columnconfigure(0, weight=1)


        menubar = tk.Menu(container)
        filemenu = tk.Menu(menubar, tearoff=0)
        filemenu.add_command(label="Save settings", command = lambda: popupmsg("Not supported just yet!"))
        filemenu.add_separator()
        filemenu.add_command(label="Exit", command=quit)
        menubar.add_cascade(label="File", menu=filemenu)

        exchangeChoice = tk.Menu(menubar, tearoff=1)
        exchangeChoice.add_command(label="BTC-e",
                                   command=lambda: changeExchange("BTC-e","btce"))
        exchangeChoice.add_command(label="Bitfinex",
                                   command=lambda: changeExchange("Bitfinex","bitfinex"))
        exchangeChoice.add_command(label="Bitstamp",
                                   command=lambda: changeExchange("Bitstamp","bitstamp"))
        exchangeChoice.add_command(label="Huobi",
                                   command=lambda: changeExchange("Huobi","huobi"))

        menubar.add_cascade(label="Exchange", menu=exchangeChoice)

        tk.Tk.config(self, menu=menubar)

        self.frames = {}

        for F in (StartPage, BTCe_Page):

            frame = F(container, self)

            self.frames[F] = frame

            frame.grid(row=0, column=0, sticky="nsew")

        self.show_frame(StartPage)

    def show_frame(self, cont):

        frame = self.frames[cont]
        frame.tkraise()


class StartPage(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self,parent)
        label = tk.Label(self, text=("""ALPHA Bitcoin trading application
        use at your own risk. There is no promise
        of warranty."""), font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Agree",
                            command=lambda: controller.show_frame(BTCe_Page))
        button1.pack()

        button2 = ttk.Button(self, text="Disagree",
                            command=quit)
        button2.pack()



class PageOne(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self, parent)
        label = tk.Label(self, text="Page One!!!", font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Back to Home",
                            command=lambda: controller.show_frame(StartPage))
        button1.pack()




class BTCe_Page(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self, parent)
        label = tk.Label(self, text="Graph Page!", font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Back to Home",
                            command=lambda: controller.show_frame(StartPage))
        button1.pack()





        canvas = FigureCanvasTkAgg(f, self)
        canvas.show()
        canvas.get_tk_widget().pack(side=tk.BOTTOM, fill=tk.BOTH, expand=True)

        toolbar = NavigationToolbar2TkAgg(canvas, self)
        toolbar.update()
        canvas._tkcanvas.pack(side=tk.TOP, fill=tk.BOTH, expand=True)



app = SeaofBTCapp()
app.geometry("1280x720")
ani = animation.FuncAnimation(f, animate, interval=5000)
app.mainloop()



The next tutorial: Time-frame and sample size option
